LCD_HD44780_lib_API

Enumerations
enum	LCD_alignment_e { left , right }
	Labels for alignment parameter used by lcd_int() and lcd_hex() functions. More...
enum	LCD_LINES_e { LINE_1 , LINE_2 , LINE_3 , LINE_4 }
	Line labels used when calling lcd_locate() or lcd_buf_locate() function. More...
enum	LCD_COLUMNS_e {   C1 , C2 , C3 , C4 ,   C5 , C6 , C7 , C8 ,   C9 , C10 , C11 , C12 ,   C13 , C14 , C15 , C16 ,   C17 , C18 , C19 , C20 }
	Column labels used when calling lcd_locate() or lcd_buf_locate() function. More...

Functions
void	lcd_init (void)
void	lcd_enable_backlight (void)
	Function for disabling backlight od the LCD.
void	lcd_disable_backlight (void)
	Function that disable backlight of the LCD. This function change the backlight GPIO pin state to inactive. Active state of the GPIO backlight pin is defined by @ lcd_init()
void	lcd_cls (void)
	Function that clears the LCD screen and sets the cursor on the position of the first character in the first line of the LCD screen.
void	lcd_def_char (const uint8_t CGRAM_bank_x_char_adr, const uint8_t *def_char)
	Function for defining custom user characters in CGRAM of the LCD. More...
void	lcd_load_char_bank (const lcd_bank_load_struct_t *char_bank)
	Function that loads to LCD_CGRAM predefined characters form specific user char_bank. More...
void	lcd_char (const char C)
	Function for printing the char on the LCD screen under the current position of the LCD cursor. More...
void	lcd_str (const char *str)
	Function for printing/writing the string on the LCD screen starting from the current LCD cursor position. More...
void	lcd_int (int val, uint8_t width, enum LCD_alignment_e alignment)
	Function for printing the integer value on the LCD screen under the current position of the LCD cursor. More...
void	lcd_hex (int val, uint8_t width, enum LCD_alignment_e alignment)
	Function for printing the integer value in hexadecimal format on the LCD screen under the current position of the LCD cursor. More...
void	lcd_bin (int val, uint8_t width)
	Function for printing the integer value in hexadecimal format on the LCD screen under the current position of the LCD cursor. More...
void	lcd_locate (enum LCD_LINES_e y, enum LCD_COLUMNS_e x)
	Function that moves LCD cursor to a specific position located under the x and y coordinate. More...
void	lcd_home (void)
	Function that moves LCD cursor to the first position at the first row of the LCD screen.
void	lcd_cursor_on (void)
	Function that activates the visibility of the LCD cursor.
void	lcd_cursor_off (void)
	Function that deactivates the visibility and blinking of the LCD cursor.
void	lcd_blinking_cursor_on (void)
	Function that activates the visibility and blinking of the LCD cursor.
void	lcd_buf_cls (void)
	Function that puts spaces(0x32) in the whole LCD buffer and sets the cursor on the position of the first character in the first line of the LCD buffer.
void	lcd_buf_char (const char c)
	Function for adding the char to the LCD buffer under the current position of the LCD buffer. More...
void	lcd_buf_locate (enum LCD_LINES_e y, enum LCD_COLUMNS_e x)
	Function that changes the current LCD buffer position pointer to a specific position located under the x and y coordinate. More...
void	lcd_buf_str (const char *str)
	Function for placing the string in the LCD buffer starts from the current LCD buffer position pointer. More...
void	lcd_update (void)
	Function that prints on the LCD screen the content of The LCD buffer. The function sets also The LCD buffer position pointer to the First line's first character.
void	lcd_buf_int (int val, uint8_t width, enum LCD_alignment_e alignment)
	Function for adding integer value as string to the LCD buffer under the current position of the LCD buffer pointer. More...
void	lcd_buf_hex (int val, uint8_t width, enum LCD_alignment_e alignment)
	Function for adding integer value in hexadecimal format as a string to the LCD buffer under the current position of the LCD buffer pointer. More...
void	lcd_buf_bin (int val, uint8_t width)
	Function for adding to the LCD buffer the integer value in binary format as a string under the current position of the LCD buffer pointer. More...

Detailed Description

Copyright

Copyright (c) 2025

Enumeration Type Documentation

LCD_alignment_e

enum LCD_alignment_e

Labels for alignment parameter used by lcd_int() and lcd_hex() functions.

Enumerator
left	pass as argument when calling lcd_int() or lcd_buf_int() or lcd_hex() or lcd_buf_hex() to set left alighment
right	pass as argument when calling lcd_int() or lcd_buf_int() or lcd_hex() or lcd_buf_hex() to set right alighment

LCD_COLUMNS_e

enum LCD_COLUMNS_e

Column labels used when calling lcd_locate() or lcd_buf_locate() function.

Enumerator
C1	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 1'st char/collumn of LCD
C2	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 2'nd char/collumn of LCD
C3	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 3'th char/collumn of LCD
C4	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 4'th char/collumn of LCD
C5	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 5'th char/collumn of LCD
C6	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 6'th char/collumn of LCD
C7	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 7'th char/collumn of LCD
C8	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 8'th char/collumn of LCD
C9	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 9'th char/collumn of LCD
C10	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 10'th char/collumn of LCD
C11	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 11'th char/collumn of LCD
C12	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 12'th char/collumn of LCD
C13	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 13'th char/collumn of LCD
C14	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 14'th char/collumn of LCD
C15	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 15'th char/collumn of LCD
C16	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 16'th char/collumn of LCD
C17	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 17'th char/collumn of LCD
C18	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 18'th char/collumn of LCD
C19	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 19'th char/collumn of LCD
C20	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to 20'th char/collumn of LCD

LCD_LINES_e

enum LCD_LINES_e

Line labels used when calling lcd_locate() or lcd_buf_locate() function.

Enumerator
LINE_1	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to first line of LCD
LINE_2	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to second line of LCD
LINE_3	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to third line of LCD
LINE_4	pass as argument when calling lcd_locate() or lcd_buf_locate() to move curson to fourth line of LCD

Function Documentation

lcd_bin()

void lcd_bin	(	int	val,
		uint8_t	width
	)

Function for printing the integer value in hexadecimal format on the LCD screen under the current position of the LCD cursor.

Parameters

val	int type value to print on LCD screen in hexadecimal format
width	Minimum number of characters to be printed. If the value to be printed is shorter than this number, the result is padded with blank spaces. The value is not truncated even if the result is larger. The width should contain additional 2 characters for '0x' at the beginning of the printed value.

Attention

to compile for AVR ucontrollers definition of flag AVR is required.

Here is the call graph for this function:

lcd_buf_bin()

void lcd_buf_bin	(	int	val,
		uint8_t	width
	)

Function for adding to the LCD buffer the integer value in binary format as a string under the current position of the LCD buffer pointer.

Parameters

val

int type value to be added to the LCD buffer as a string in hexadecimal format

width

Minimum number of characters to be added to LCD buffer. If the value to be added to the buffer as string length is shorter than width, the result is padded with blank spaces. The value to be added to the buffer as a string is not truncated if the string length represents the value in binary format length is larger than the width value. The width should contain an additional 2 characters for "0b" at the beginning of the value represented as a string. example: 0b01-> width=4

Attention

to compile for AVR ucontrollers, definition of flag AVR is required.

Here is the call graph for this function:

lcd_buf_char()

void lcd_buf_char

(

const char

c

)

Function for adding the char to the LCD buffer under the current position of the LCD buffer.

Parameters

C	char (for example '1') or its ASCI code (0x31).

Note

For user-defined char, place LCD_CGRAM_BANK_x_e (Position/address of the character in CGRAM of the LCD where defined char was written).

lcd_buf_hex()

void lcd_buf_hex	(	int	val,
		uint8_t	width,
		enum LCD_alignment_e	alignment
	)

Function for adding integer value in hexadecimal format as a string to the LCD buffer under the current position of the LCD buffer pointer.

Parameters

val	int type value to add to LCD buffer as a string in hexadecimal format
width	Minimum number of characters to be added to lcd buffer. If the value to be added to the buffer is shorter than the width, the result is padded with blank spaces. The value to be added to the buffer as a string is not truncated if the string length is larger than the width value. Width should contain additional 2 characters for "0x" at the beginning of the value represented as a string. example: 0x01-> width=4
alignment	This parameter can only accept values defined in LCD_alignment_e. If the value to be printed is shorter than the width, this parameter will specify the alignment of the printed text value.

Attention

to compile for AVR ucontrollers, definition of flag AVR is required.

Here is the call graph for this function:

lcd_buf_int()

void lcd_buf_int	(	int	val,
		uint8_t	width,
		enum LCD_alignment_e	alignment
	)

Function for adding integer value as string to the LCD buffer under the current position of the LCD buffer pointer.

Parameters

val	int type value to add to LCD buffer
width	Minimum number of characters to be added to LCD buffer. If the value to be added to the LCD buffer is shorter than width, the result is padded with blank spaces. The value to be added to the buffer as a string is not truncated if the string length is larger than the width value.
alignment	This parameter can only accept values defined in LCD_alignment_e. If the value to be printed is shorter than the width, this parameter will specify the alignment of the printed text value.

Attention

to compile for AVR ucontrollers, definition of flag AVR is required.

Here is the call graph for this function:

lcd_buf_locate()

void lcd_buf_locate	(	enum LCD_LINES_e	y,
		enum LCD_COLUMNS_e	x
	)

Function that changes the current LCD buffer position pointer to a specific position located under the x and y coordinate.

Parameters

y	LCD row/line number. This parameter can only accept values defined in LCD_LINES_e.
x	LCD column number. This parameter can only accept values defined in LCD_COLUMNS_e.

lcd_buf_str()

void lcd_buf_str

(

const char *

str

)

Function for placing the string in the LCD buffer starts from the current LCD buffer position pointer.

Parameters

str	string that should be placed in the LCD buffer

Here is the caller graph for this function:

lcd_char()

void lcd_char

(

const char

C

)

Function for printing the char on the LCD screen under the current position of the LCD cursor.

Parameters

C	char (for example '1') or its ASCI code (0x31).

Note

For user-defined char, place CGRAM_char_index (Position/address of the character in CGRAM of the LCD where defined char was written).

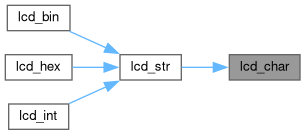

Here is the caller graph for this function:

lcd_def_char()

void lcd_def_char	(	const uint8_t	CGRAM_bank_x_char_adr,
		const uint8_t *	def_char
	)

Function for defining custom user characters in CGRAM of the LCD.

Parameters

CGRAM_char_index	Position/address of the character in CGRAM of the LCD where defined char should be written. For the predefined example of special characters, taken values are defined in the type enum LCD_CGRAM_BANK_1_e that is declared in lcd-hd44780.h
def_char	Pointer to the predefined special character.

Note

CGRAM_char_index - This Parameter can take values from 0 to 7. For the predefined example of special characters, taken values are defined in the type enum LCD_CGRAM that is defined in lcd_hd44780_def_char.h

Here is the caller graph for this function:

lcd_hex()

void lcd_hex	(	int	val,
		uint8_t	width,
		enum LCD_alignment_e	alignment
	)

Function for printing the integer value in hexadecimal format on the LCD screen under the current position of the LCD cursor.

Parameters

val	int type value to print on LCD screen in hexadecimal format
width	Minimum number of characters to be printed. If the value to be printed is shorter than this number, the result is padded with blank spaces. The value is not truncated even if the result is larger. The width should contain additional 2 characters for '0x' at the beginning of the printed value.
alignment	This parameter can only accept values defined in LCD_alignment_e. If the value to be printed is shorter than the width, this parameter will specify the alignment of the printed text value.

Attention

to compile for AVR ucontrollers definition of flag AVR is required.

Here is the call graph for this function:

lcd_int()

void lcd_int	(	int	val,
		uint8_t	width,
		enum LCD_alignment_e	alignment
	)

Function for printing the integer value on the LCD screen under the current position of the LCD cursor.

Parameters

val	int type value to print on LCD screen
width	Minimum number of characters to be printed. If the value to be printed is shorter than this number, the result is padded with blank spaces. The value is not truncated even if the result is larger.
alignment	This parameter can only accept values defined in LCD_alignment_e. If the value to be printed is shorter than the width, this parameter will specify the alignment of the printed text value.

Attention

to compile for AVR ucontrollers definition of flag AVR is required.

Here is the call graph for this function:

lcd_load_char_bank()

void lcd_load_char_bank

(

const lcd_bank_load_struct_t *

char_bank_data

)

Function that loads to LCD_CGRAM predefined characters form specific user char_bank.

Parameters

char_bank

- pointer to selected user char bank that function should load to LCD_CGRAM. Char banks are defined in lcd_hd44780_def_char.h

Here is the call graph for this function:

lcd_locate()

void lcd_locate	(	enum LCD_LINES_e	y,
		enum LCD_COLUMNS_e	x
	)

Function that moves LCD cursor to a specific position located under the x and y coordinate.

Parameters

y	LCD row/line number. This parameter can only accept values defined in LCD_LINES_e.
x	LCD column number. This parameter can only accept values defined in LCD_COLUMNS_e.

lcd_str()

void lcd_str

(

const char *

str

)

Function for printing/writing the string on the LCD screen starting from the current LCD cursor position.

Parameters

str	string that should be printed/written on the LCD screen

Here is the call graph for this function:

Here is the caller graph for this function:
